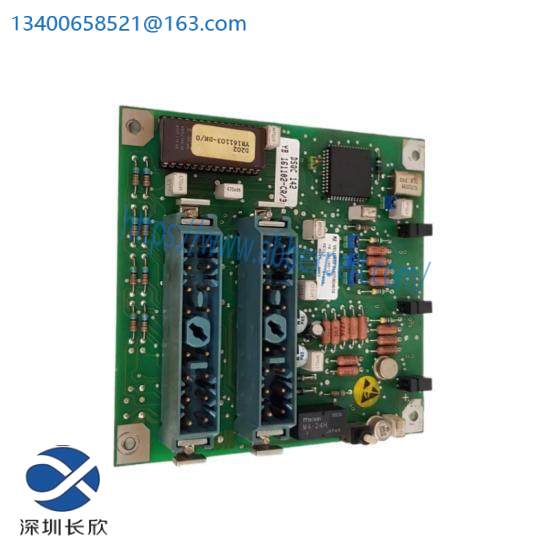

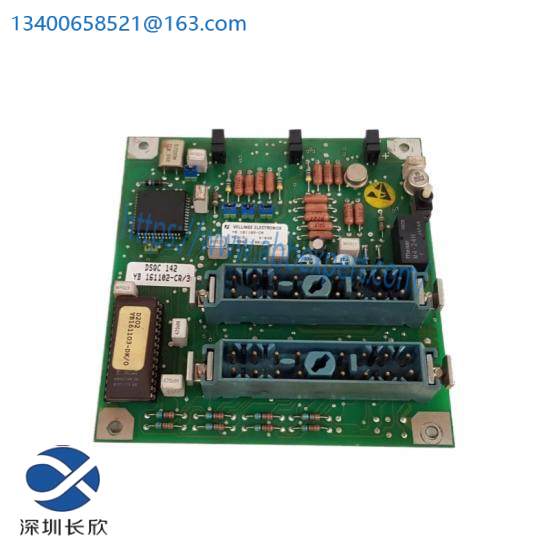

ABB DSQC142 – Industrial Interface Module

Place of Origin:Sweden

Model:DSQC142

Sub-Model:

Series:DSQC

Brand:ABB

Operating Voltage Range:12-24V DC

Input Current Rating:35mA

Output Current Rating:200mA per channel

Number of Inputs:16

Number of Outputs:16

Protocol Compatibility:EtherCAT, DeviceNet, Profinet, and CANopen

Communication Interface:RS-232/RS-485

Environmental Conditions:Operating temperature: -20°C to +70°C; Storage temperature: -40°C to +85°C

Certifications:CE, UL, CSA, and IEC

Dimensions (mm):106 x 98 x 35

Weight:0.25kg

    The ABB DSQC142 Industrial Interface Module is engineered to offer seamless integration into modern automation systems, supporting both digital and analog signal processing.

    With a compact design measuring 52 x 90 x 30mm, it optimizes space in control cabinets, making it ideal for both new installations and retrofit scenarios.

    Equipped with a dual 20-pin connector, the DSQC142 allows for easy connection to various devices, facilitating a modular approach to system expansion.

    Operating within a wide temperature range of -20°C to +70°C and withstanding humidity up to 95% without condensation, the DSQC142 ensures reliable performance in challenging environments.

    Featuring EtherCAT, DeviceNet, CANopen, Profinet, Modbus TCP/IP communication protocols, the DSQC142 supports seamless data exchange, enabling efficient communication between different automation components.

    This module is designed for ease of use, offering quick setup and maintenance through its user-friendly configuration options and robust diagnostics capabilities.
