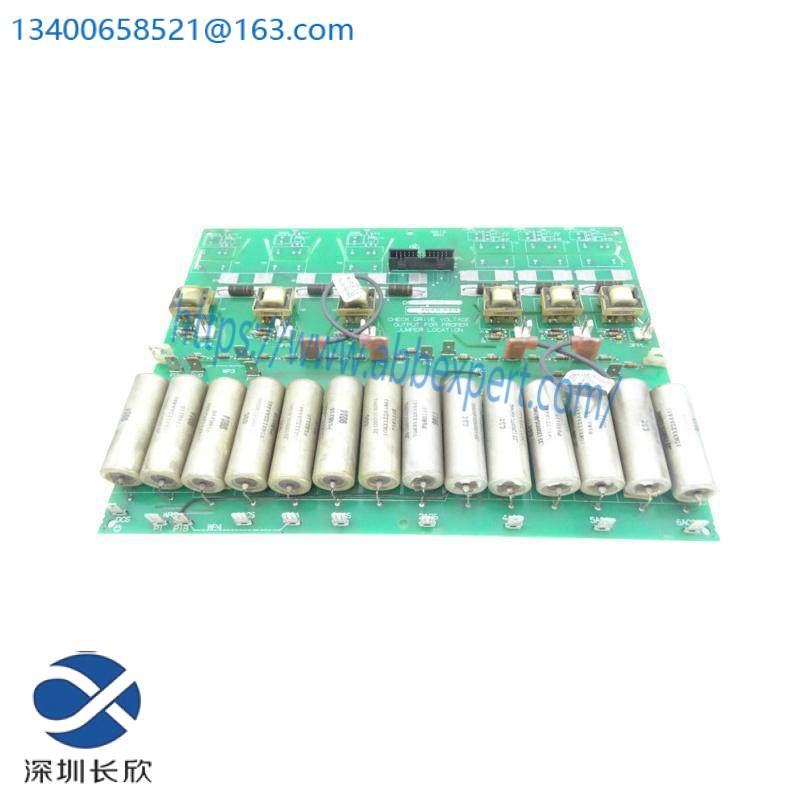

GE DS200PCCAG8ACB: Precision Engineered Power Connect Board for Turbine Control Systems

Product Type:Power Connect Board

Model:DS200PCCAG8ACB

Manufactured By:General Electric

Series:Mark V

Functional Revision:A

Physical Dimensions:148mm x 101mm x 50mm

Weight:0.2kg

Operating Voltage Range:100V to 400V

Input Current Rating:30A

Output Current Rating:30A

Communication Protocol:Serial Communication

Environment Temperature Range:-20°C to +50°C

Humidity Range:5% to 95%

Mounting Type:Panel Mount

Coating Style:Solderable Surface

Revision Information:A-rated Primary, C-rated Secondary, B-rated Artwork Configuration

    The GE DS200PCCAG8ACB Power Connect Board is specifically designed to enhance operational efficiency in industrial control applications, seamlessly bridging the gap between the power drive and the SCR power bridge for superior performance.

    Crafted with precision, this board offers high-efficiency power handling capacity, ensuring reliable and consistent operation under various industrial conditions.

    With a focus on durability and reliability, the DS200PCCAG8ACB features a standard PCB coating for enhanced resistance against wear and tear, guaranteeing long-lasting performance in harsh environments.

    This board is part of the extensive GE product line, renowned for its commitment to quality and innovation in industrial automation. It boasts multiple functional revisions, including an A-rated primary revision for core functionality, a C-rated secondary revision for advanced features, and a B-rated artwork configuration revision for enhanced compatibility and customization options.

    Designed for seamless integration with the Mark V Series of turbine control systems, the DS200PCCAG8ACB is engineered to meet the stringent demands of modern industrial settings, delivering unparalleled reliability and performance to critical operations.
