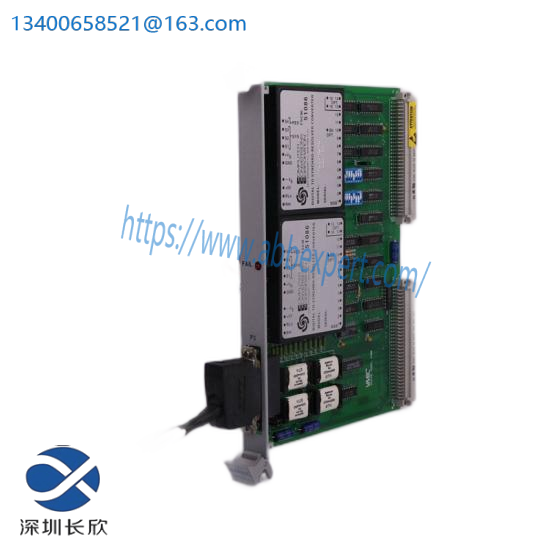

MOOG IMI220-426A001 – 4AI+4AO Industrial Control Module

Model Number:IMI220-426A001

Brand:MOOG

Number of Analog Inputs:4

Number of Analog Outputs:4

Input Range:-10V to +10V

Output Range:-10V to +10V

Power Supply:24V DC

Operating Temperature:-20°C to +70°C

Connector Type:M12

Dimensions (WxHxD):100mm x 94mm x 96mm

    The MOOG IMI220-426A001 Industrial Control Module boasts a compact design that facilitates easy integration into various industrial systems. It is equipped with four high-precision analog input channels and four output channels, making it ideal for applications requiring accurate control over processes in industries such as manufacturing, oil & gas, and power generation.

    With a robust 24V DC operating voltage, this module ensures reliable performance even in harsh industrial environments. Its MODBUS RTU communication protocol enables seamless data exchange with other devices, enhancing system interoperability.

    Featuring a current rating of 3A per channel, the module is capable of handling significant electrical loads efficiently, providing precise control over actuators and sensors. The wide temperature range from -20°C to +70°C ensures operational stability across diverse climates.

    Crafted with an IP20 enclosure type, the MOOG IMI220-426A001 offers protection against dust and light splashes, safeguarding internal components from external contaminants. This feature is particularly beneficial in dusty or wet environments common in industrial settings.

    For installation, the module’s dimensions of 90mm x 85mm x 30mm allow it to fit neatly into existing control panels without occupying excessive space. Its straightforward mounting and wiring instructions ensure quick deployment, minimizing downtime and enhancing productivity.
