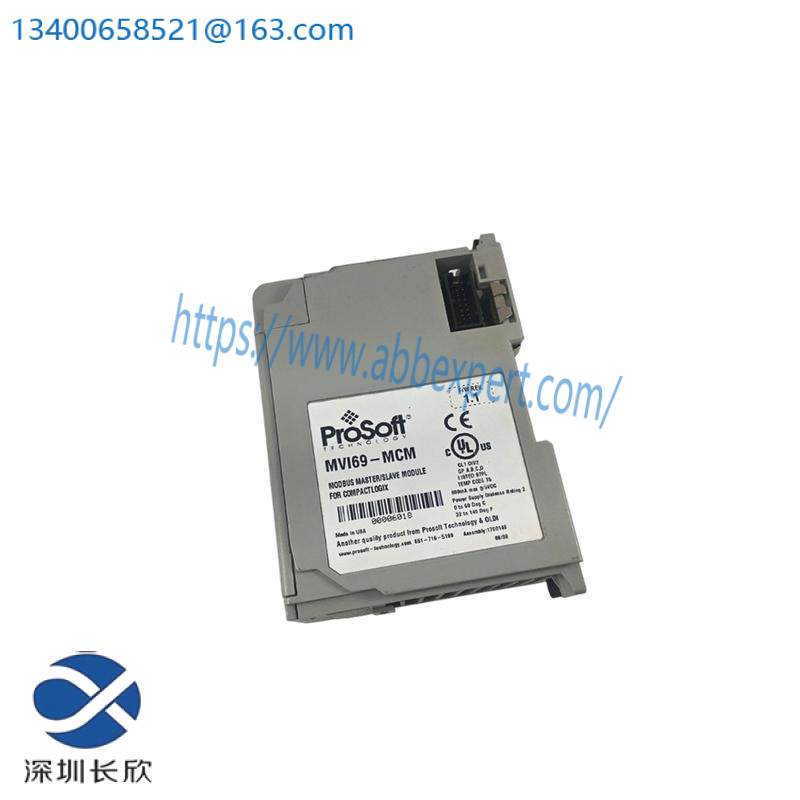

Prosoft MVI69-MCM ASCII Communication Module for Industrial Automation, Efficient PLC Data Transfer

Product Type:ASCII

Product ID:MVI69-MCM

Prosoft Type Designation:ASCII

Licensed Backplane Technology:Manufactured under license from Rockwell Automation

High-speed Data Transfer:Between MVI69 module and CompactLogix / MicroLogix processor

Generic 1769 Module:Installation compatibility

View Module Data:In RSLogix 5000 controller tags and UDTs

Modbus Protocol:Master/Slave interface

Emulation Capabilities:On each individually-configurable application port

    The Prosoft MVI69-MCM Communication Module is engineered with licensed backplane technology, ensuring reliable operation and compatibility with Rockwell Automation’s extensive network. This module seamlessly integrates as a Generic 1769 series component, offering a comprehensive solution for industrial communication.

    Equipped with an intuitive add-on instruction feature, this module creates User Datagram Tables (UDTs) for defining logical relationships between inputs, outputs, status, and control data. This feature streamlines data management and enhances operational efficiency.

    Utilizing the Modbus Master/Slave protocol interface, the Prosoft MVI69-MCM enables flexible and robust communication within complex industrial networks. It supports emulating both Modbus Master and slave devices, catering to diverse application needs.

    Accessible diagnostic data in RSLogix 5000 controller tags provides real-time insights into node health, empowering users to make informed decisions about system maintenance and troubleshooting. This ensures continuous operation and minimizes downtime.

    Designed for compatibility with CompactLogix processors featuring 1769 I/O bus capability version 16 and above, the MVI69-MCM is not compatible with MicroLogix 1500 models. This ensures optimal performance tailored to specific automation requirements.
