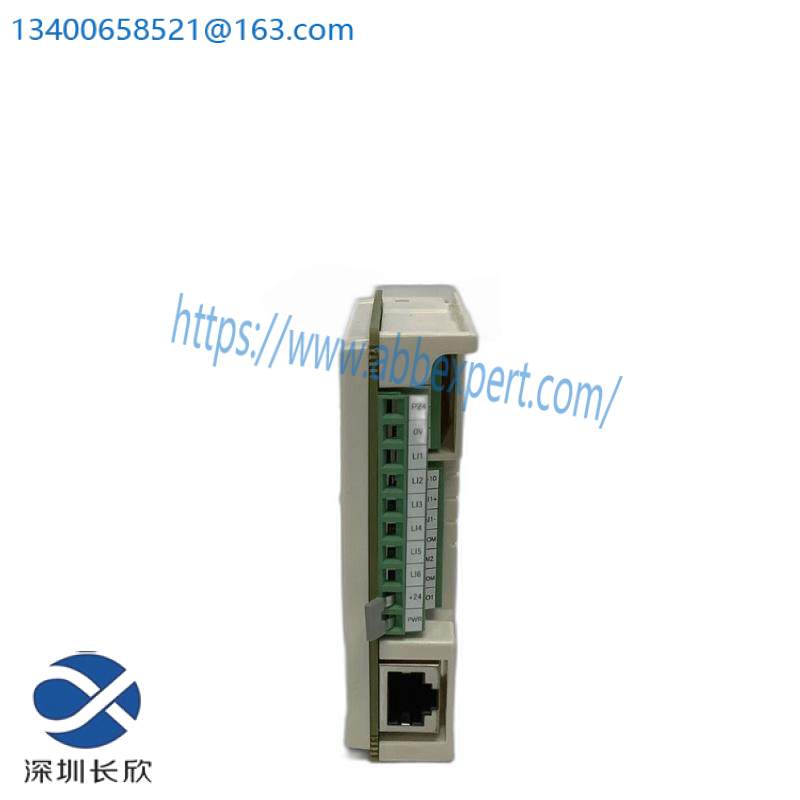

Schneider STBDAI7220 Standard Analog Input Module

Manufacturer:Schneider Electric

Model Number:STBDAI7220

Module Type:Digital Input Module

Input Channels:8 channels

Input Voltage Range:0-30V DC

Input Current Range:Up to 5mA per channel

Voltage Tolerance:+/- 10%

Response Time:Less than 1ms

Operating Temperature Range:-40°C to +85°C

Storage Temperature Range:-40°C to +85°C

Communication Protocol:Modbus RTU/ASCII

Power Supply:24V DC

    The Schneider STBDAI7220 is an essential component for any industrial automation system. Designed for reliability and precision, this module offers eight channels of high-resolution analog inputs, capable of handling a wide range of input signals from -10V to +10V or 0 to 20mA. With a resolution of up to 16 bits, it ensures accurate and consistent data acquisition, which is crucial for effective process control. The module supports multiple communication interfaces including Modbus RTU/ASCII, Profibus DP, and CANopen, allowing seamless integration into existing systems. The robust design and wide operating temperature range (-25°C to +70°C) make it suitable for harsh industrial environments, ensuring reliable performance even under challenging conditions. The Schneider STBDAI7220 is built with high-quality materials and undergoes rigorous testing to guarantee long-term durability and performance. Whether you are upgrading your current system or starting a new project, this module provides the flexibility and accuracy needed for modern industrial automation needs.
