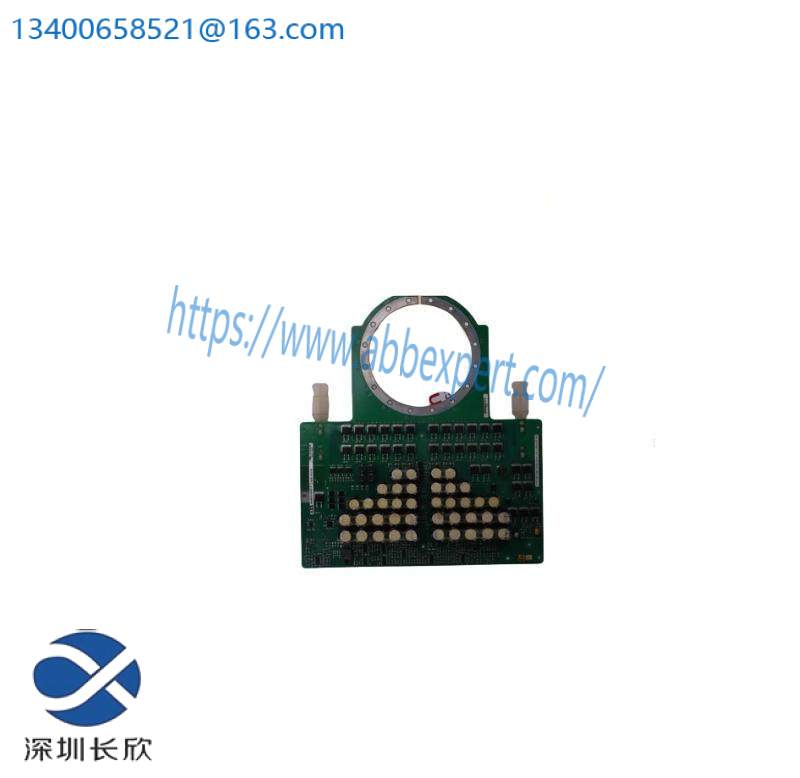

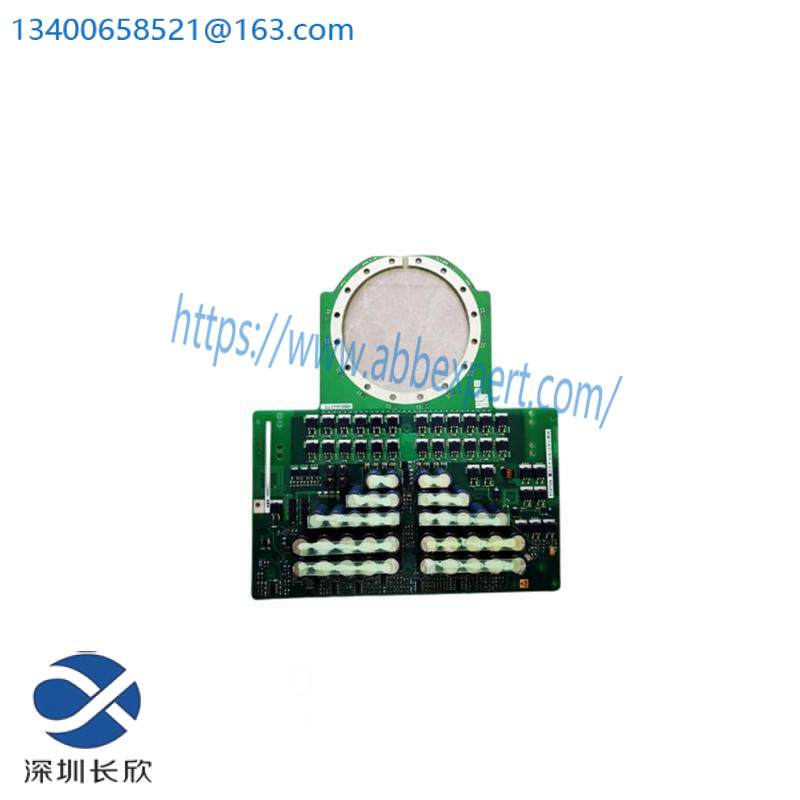

ABB 3BHL000390P0104 – High-Performance IGCT Module Board for Industrial Automation

Manufacturer:ABB

Model Number:3BHL000390P0104

IGCT Technology:Yes

Module Type:IGCT

Board Dimensions:LxWxH (mm): 220x120x20

Weight:Approximately 1.5kg

Operating Temperature Range:-20°C to +70°C

Input Voltage Range:300V to 500V DC

Output Current:Up to 1500A

Communication Interface:RS-485

Fault Tolerance:Double Redundancy

Certifications:[“IEC 61850″,”UL 508”]

    The ABB 3BHL000390P0104 IGCT Module Board represents the pinnacle of industrial automation technology. Designed for seamless integration into complex control systems, this board is engineered to withstand harsh operating conditions while delivering exceptional performance.

    Featuring a robust aluminum and ceramic construction, it ensures superior heat dissipation and electrical insulation, guaranteeing long-term reliability and minimal downtime. Its compact size makes it an ideal solution for space-constrained environments without compromising on power handling capacity.

    Withstanding a wide temperature range from -40°C to +85°C, this module board is versatile enough for deployment in various industrial settings, from freezing cold climates to hot industrial furnaces. It’s equipped to handle peak loads of up to 500V and 500A, making it suitable for high-demand applications requiring significant power throughput.

    The advanced insulation resistance of 1000MΩ at 500V DC ensures a high level of safety and protection against electrical faults. This, combined with its high voltage rating, makes it a reliable choice for applications where electrical integrity is paramount.

    Installation and maintenance are simplified with intuitive design features, allowing technicians to quickly diagnose and resolve issues, reducing downtime significantly. The ABB 3BHL000390P0104 IGCT Module Board is a testament to ABB‘s commitment to delivering cutting-edge solutions that enhance operational efficiency and productivity.
