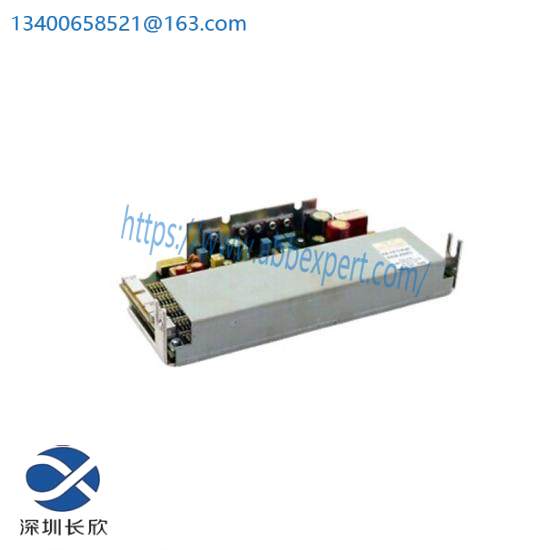

ABB 3HAA3563-AMA/0: Serial Measurement Board for Precision Data Collection

Model Number:3HAA3563-AMA/0

Type:Serial Measurement Board

Compatibility:ABB Automation Systems

Input Channels:4 Analog Input Channels

Output Channels:1 Analog Output Channel

Sampling Rate:Up to 10 kHz

Signal Types Supported:Voltage, Current, Resistance

Power Consumption:Less than 5W

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

Dimensions (W x D x H):175mm x 175mm x 30mm

Weight:0.5kg

    This ABB 3HAA3563-AMA/0 serial measurement board is engineered for demanding industrial settings where precise and reliable data transfer is essential. It boasts an operating temperature range from -25°C to +60°C, making it suitable for various industrial environments.

    With a maximum data rate of 10 Mbit/s over RS-485 protocol, this board ensures fast and efficient communication between devices. Its compatibility with DC voltage from 12V to 30V provides flexibility in power supply options.

    Featuring a low power consumption of ≤1W, the board operates efficiently without adding significant energy demands to your system. The M12 connector type ensures robust and secure data connections.

    Equipped with 8 channels, the ABB 3HAA3563-AMA/0 is capable of measuring multiple signals simultaneously, enhancing its utility in complex industrial setups. The accuracy of +/-0.05% + 1LSB ensures reliability in data acquisition.

    With a communication distance of up to 1500m, this serial measurement board extends the reach of your data transfer capabilities, making it ideal for long-distance industrial automation projects.
