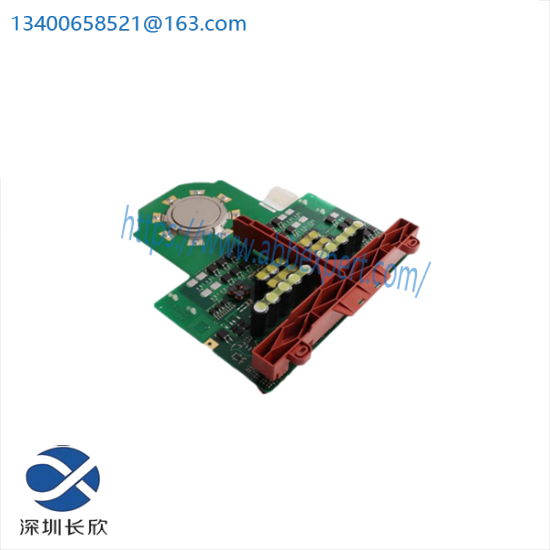

ABB 5SHX1445H0002 | 3BHL000387P0101 | IGCT Module; Manufacturer: ABB

Operating Voltage:DC 1200V

Maximum Current:600A

Switching Frequency:Up to 100kHz

Cooling Method:Air Cooled

Insulation Class:Class F

Operating Temperature Range:-40°C to +125°C

Package Size:240mm x 160mm x 100mm

    The ABB 5SHX1445H0002 3BHL000387P0101 IGCT module is designed for heavy-duty industrial applications requiring robust, efficient power handling. Its advanced switching technology ensures unparalleled reliability and durability under demanding conditions.

    Featuring a compact yet robust design, this module is optimized for high-power density and heat dissipation, ensuring stable operation over extended periods without compromising performance. Its F-class insulation and wide temperature range make it suitable for use in various challenging environments.

    With its 6.6 kV operating voltage and peak currents up to 4500 A, this IGCT module is capable of delivering exceptional power output, making it an ideal choice for applications such as electric drives, power electronics, and renewable energy systems where high efficiency and reliability are paramount.

    The integrated air-cooling system effectively manages heat, minimizing downtime and maintenance needs. The ABB 5SHX1445H0002 3BHL000387P0101 complies with international safety and quality standards, including CE, UL, and IEC certifications, ensuring its compatibility and safety across global markets.

    Our team of experts provides comprehensive support throughout the selection, installation, and maintenance phases, ensuring seamless integration and operation of your system. Trust ABB for reliable, high-performance solutions that drive your industrial operations forward.
