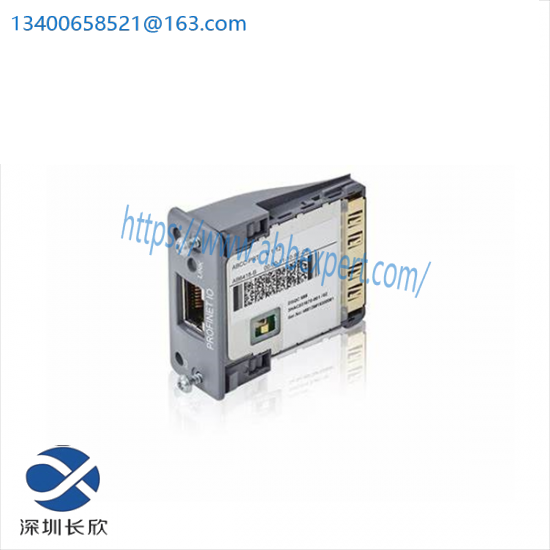

DSQC688 – ABB Board

Manufacturer:ABB

Model Number:DSQC688 3HAC031670001

Module Type:Robot ProfiNet Board

Operating System Compatibility:ABB Robot System 1000, 500, 400

Communication Protocol:ProfiNet

Data Transfer Rate:Up to 10 Mbps

Power Supply Voltage:DC 24 V

Current Consumption:Less than 100 mA

Dimensions (WxHxD):55 x 80 x 28 mm

Weight:0.03 kg

    Integrating advanced Profinet technology, the ABB DSQC688 3HAC031670001 Robot ProfiNet Board ensures high-speed data transfer rates, enabling smooth communication between control systems and robotic components.

    Crafted from high-grade aluminum alloy, this board boasts a durable and lightweight design, ensuring it can withstand harsh industrial conditions while maintaining its operational efficiency.

    Equipped with 16 Input/Output channels, it offers flexibility in managing diverse signals and commands, making it an indispensable part of modern automation setups.

    With an operating temperature range from -25°C to +60°C, the board is engineered to perform reliably across various environmental conditions, from cold workshops to hot production floors.

    The board features a robust IP20 protection rating, safeguarding against dust and minor water splashes, crucial for maintaining operational integrity in industrial settings.
