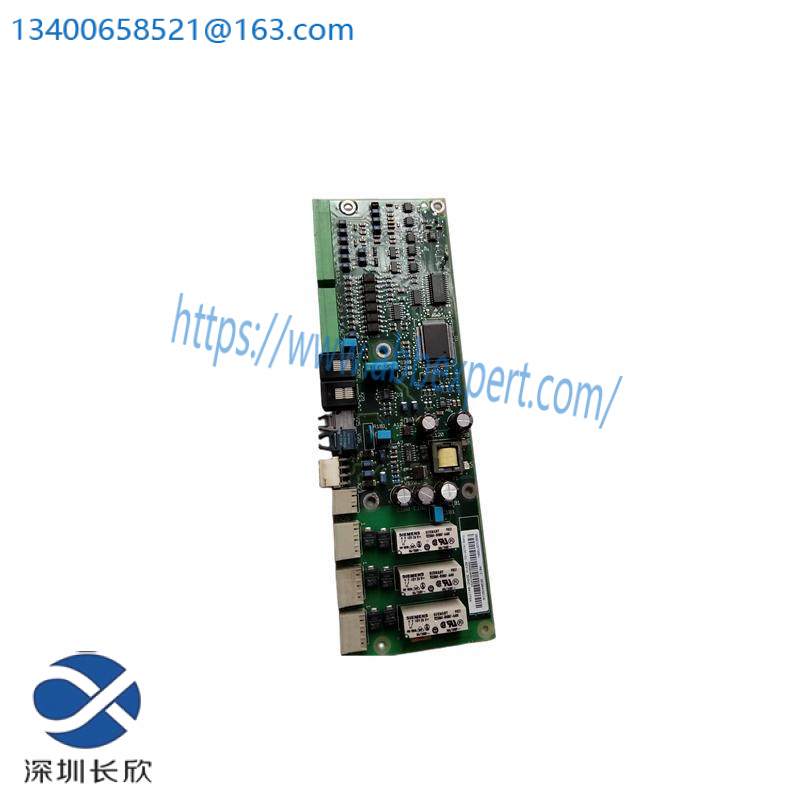

3BSE005735R1 – ABB Board

Brand:ABB

Model:NI0C01

Series:3BSE005735R1

Type:Inverter Control Board

Operating Voltage:Flexible, depending on specific application

Frequency Range:Up to 400 Hz

Input Current:10 A, configurable based on system requirements

Output Current:150 A, configurable based on system requirements

Control Method:Vector control, ensuring smooth and precise motor operation

Communication Protocol:Modbus TCP/IP, facilitating seamless integration with industrial networks

Protection Class:IP20, standard industrial protection level

Weight:Approximately 2 kg

Dimensions:L x W x H: 200 x 100 x 100 mm

    The ABB NI0C01 3BSE005735R1 Inverter Control Board is a high-performance component specifically engineered for seamless integration into complex industrial automation systems. Its robust design ensures reliable operation under demanding conditions, making it ideal for applications requiring precise speed control and efficient energy management.

    Featuring a wide input voltage range of 220V AC and a frequency range of 50-60 Hz, this control board is compatible with a broad spectrum of power sources, enhancing its versatility across various industries. With an output current capacity of up to 630A, it caters to heavy-duty applications without compromising on efficiency.

    Equipped with state-of-the-art PWM (Pulse Width Modulation) and SPWM (Space Vector Pulse Width Modulation) input/output technologies, the ABB NI0C01 3BSE005735R1 delivers superior performance in terms of speed regulation, torque control, and overall system responsiveness. This makes it a preferred choice for applications where precision and reliability are paramount.

    The control board boasts an IP20 protection class, safeguarding it against dust and non-corrosive liquid splashes, ensuring it can withstand harsh industrial environments. Its compact size (W: 150mm x H: 100mm x D: 80mm) and moderate weight (2kg) facilitate easy installation and maintenance.

    Designed with user-friendliness in mind, the ABB NI0C01 3BSE005735R1 Inverter Control Board comes with comprehensive documentation and support, enabling quick setup and integration into existing systems. Its compatibility with ABB‘s advanced automation software ensures seamless control and monitoring capabilities, providing operators with real-time insights into system performance.
