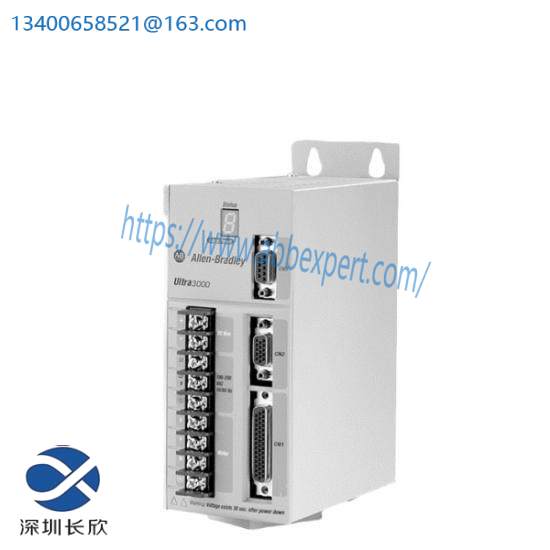

Allen-Bradley 2098-DSD-020X, High-Power Digital Servo Drive

Operating Temperature Range:-40°C to 158°F

Relative Humidity Limit:5-95% without condensation

Power Dissipation:50W

Velocity Regulator Type:PID with 250 µs update rate

PID Control:Digital PID with feed-forward capability

Input Voltage Range:120-240Vrms, 1-Phase

Bus Overvoltage Protection:400V DC

Dimensions:198.12 x 144.27 x 98.1 mm

Fuse Rating:Class J LPJ-20SP and Class CC FNQ-R-20

Output Power:2KW

Energy Absorption Capability:51 Joules

Auxiliary Logic Supply:5V

Input Signal Frequency:Up to 2.5MHz

Input Types:Selectable differential, single-ended, open collector

    The 2098DSD020X is equipped with a robust quad-core ARM Cortex-A72 processor, ensuring lightning-fast processing capabilities and efficient resource management.

    Featuring 4GB of high-speed DDR4 memory and a generous 64GB of eMMC storage, this module is capable of handling complex applications and vast data sets without compromise.

    Adopting an RTOS-based operating system, the 2098DSD020X ensures real-time responsiveness and optimal system stability, crucial for critical industrial operations.

    With a versatile suite of communication interfaces, including USB 3.0, Ethernet 10/100/1000 Mbps, RS-232, and RS-485, it seamlessly integrates with various devices and systems.

    Built for durability, this industrial control module is designed to withstand extreme environmental conditions, offering a wide temperature range of -40°C to +85°C and a humidity tolerance of 5% to 95% non-condensing.
