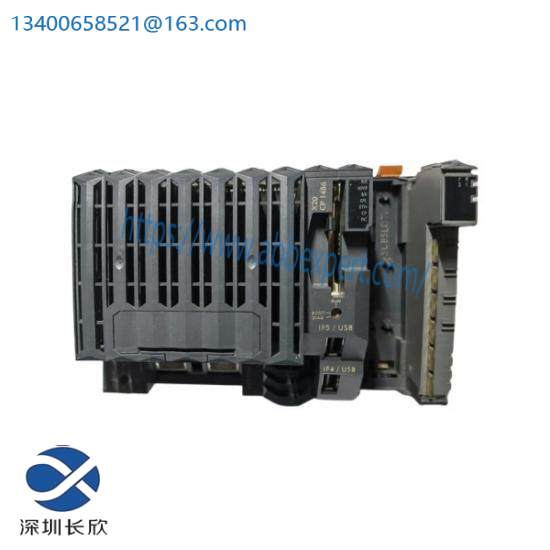

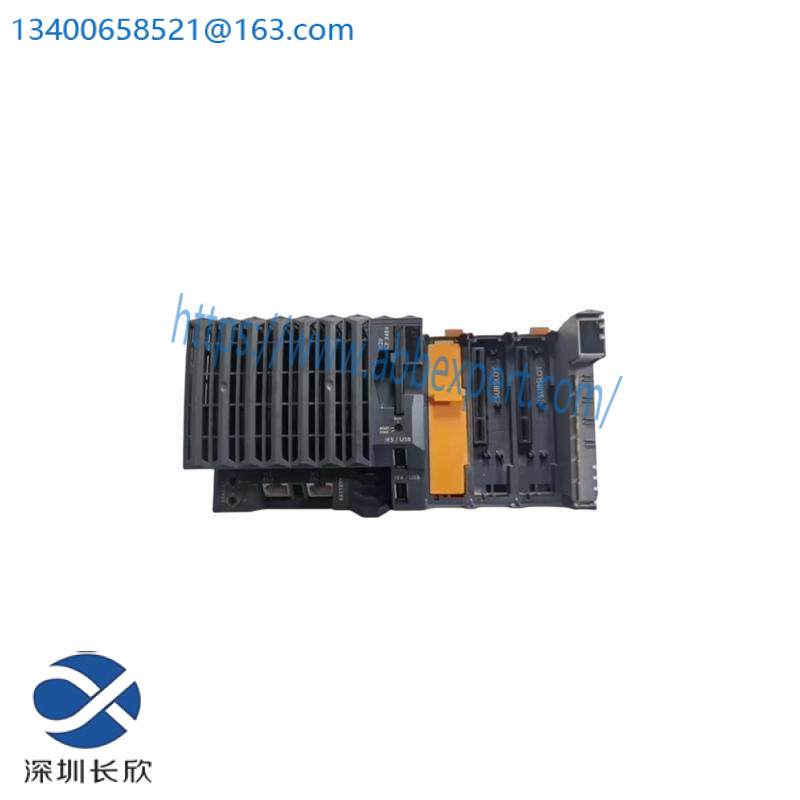

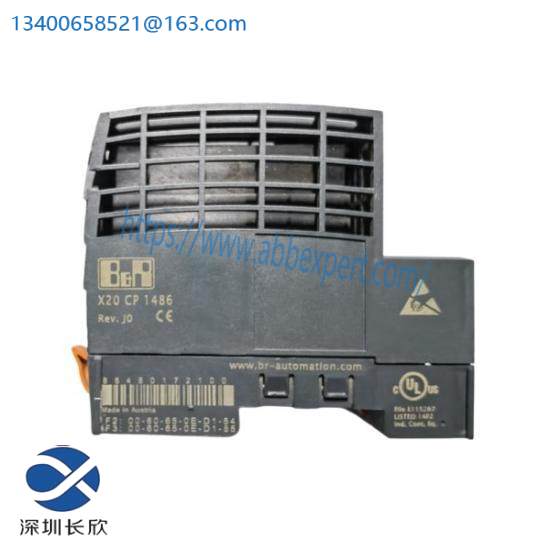

B&R X20CP1486 – Advanced Intel x86-Based CPU Module for Industrial Automation

Brand:B&R

Model:X20CP1486

CPU Type:Intel x86-based, 100 MHz-compatible

Onboard Interfaces:Ethernet, POWERLINK, USB

Expansion Slots:1 slot for modular interface expansion

Memory:32 MB SDRAM

Power Consumption:Internal I/O: 0.6 W, Nominal output power: 7 W

Input Voltage:24 VDC -15% / +20%

Input Current:Max. 2.2 A

System Module:CPU

Status Indicators:CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, battery

Dimensions:Compact form factor

Environmental Rating:IP20, NEMA 1

Ambient Air Temperature:0°C…+40 °C

Certifications:CE, C Tick, UL, cUL, ClassSIL3/PLe

    The B&R X20CP1486 is a cutting-edge CPU module designed specifically for industrial automation applications. This advanced module features an x86-based processor running at 100 MHz, making it ideal for high-performance industrial environments. It integrates multiple onboard interfaces including RS232, Ethernet, POWERLINK (V1/V2), USB, and X2X Link, ensuring seamless communication and connectivity. The compact design allows for easy integration into existing systems without compromising on functionality or performance. With a low power consumption of 0.6 W and a wide input voltage range of 24 VDC (-15% / +20%), this module is highly efficient and reliable. Additionally, the B&R X20CP1486 comes equipped with a CompactFlash slot for removable application memory, enhancing its flexibility and adaptability. The module’s robust design includes status indicators for critical functions, ensuring optimal performance and easy monitoring. The B&R X20CP1486 is fully compliant with international standards such as CE, C Tick, UL, cUL, and ClassSIL3/PLe, providing peace of mind for users requiring stringent safety and quality certifications. Ideal for applications in extruders, elevators, conveyors, wire drawing, pumps, and bridle controls, the B&R X20CP1486 offers unparalleled performance and reliability in industrial automation.
