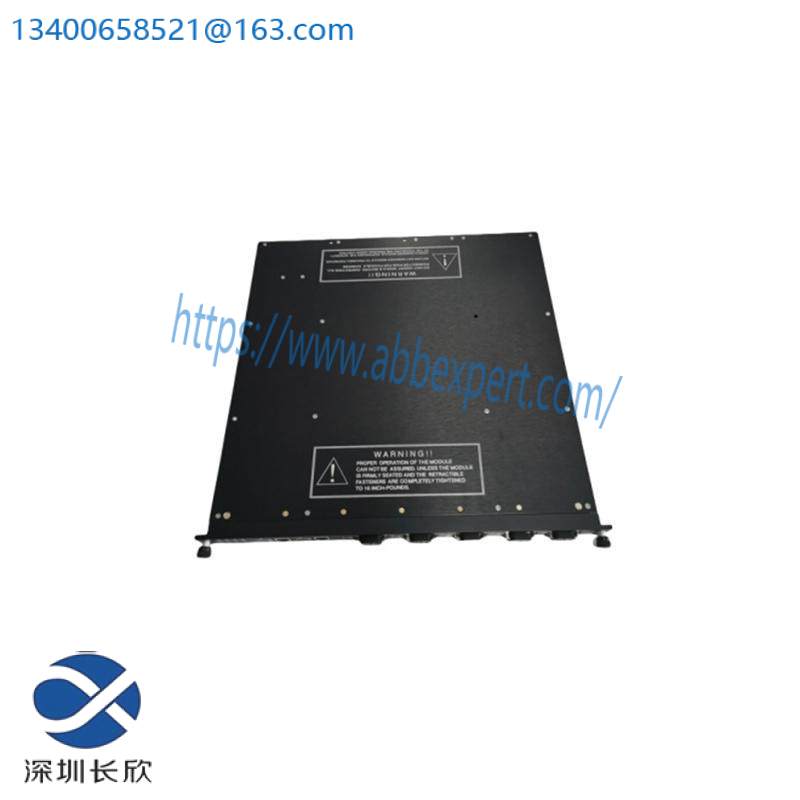

Invensys Triconex 3700A Analog Input Module – High Precision for Industrial Automation

Model Type:Analog I/O Module

Manufacturer:Invensys Triconex

Model Number:3700/3700A

Voltage:0-5V, + 6%

Type:TMR

AI Input Points:32, differential, DC coupled

Isolated Points:No

Input Update Rate:55 ms

Resolution:12 bits

Accuracy:< .15% of FSR, from 0° to 60°C

Input Resistance (load):30 MΩ (DC), min.

Power-Off Resistance:30 KΩ (DC), typical

Common Mode Rejection:-80 dB (DC-100Hz), typical

Common Mode Range:-12V to +12V peak

Leg-to-Leg Isolation:200 KΩ, typical

Normal Mode Rejection @ 8Hz:-3 dB @ 60Hz

Normal Mode Rejection @ 120Hz:-23 dB

    Designed for robust performance in harsh industrial environments, the Invensys Triconex 3700A Analog Input Module is an essential component for any automated system requiring precise and reliable data acquisition.

    With its wide input voltage range and high-resolution capabilities, this module ensures accurate readings under varying conditions, making it ideal for applications where precision is critical.

    Featuring a high update rate, this module can rapidly process and transmit data, enhancing the responsiveness of your control systems.

    Equipped with advanced isolation and rejection features, the 3700A ensures the integrity of signal transmission, even in noisy environments, thereby minimizing interference and ensuring stable operation.

    Compatible with a variety of industrial protocols and systems, this module simplifies integration into existing infrastructure, allowing for seamless expansion and enhancement of your automation capabilities.

    Backed by industry-leading technical support and a commitment to innovation, Invensys Triconex ensures that your investment in the 3700A Analog Input Module is protected with comprehensive warranty coverage and ongoing service.
