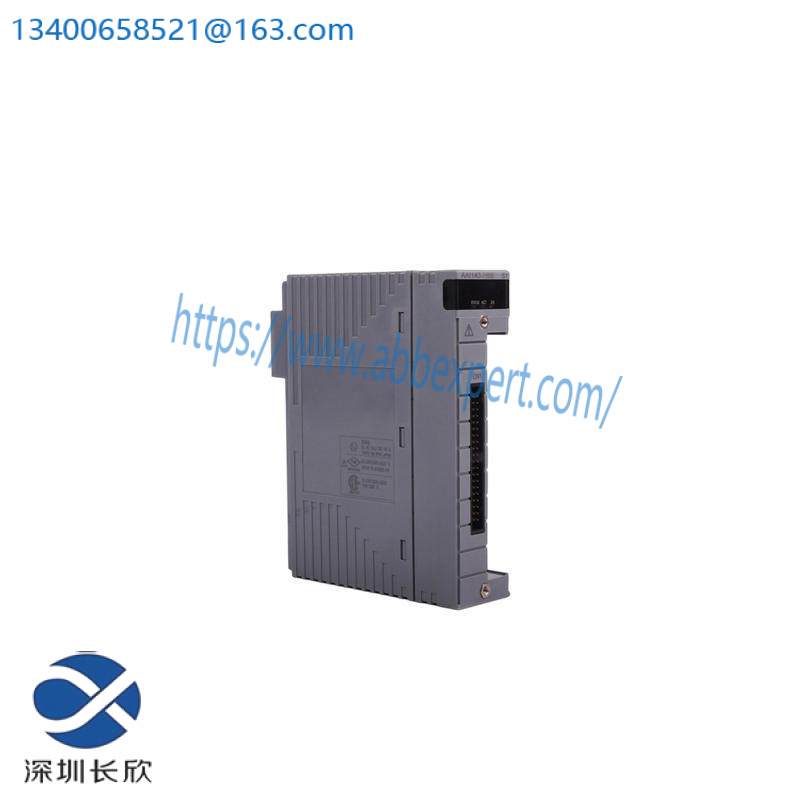

Yokogawa AAI143-H50 Analog Input Module for Safety-Critical Applications

Module Type:Isolation Barrier Enhanced Safety Module

Current Range Compatibility:2-wire Transmitter

Input Resistance (Max):250 Ω + voltage drop (3V max)

Voltage Developed Between Connecting Terminals:For 2-wire transmitter connections

Minimum Operating Voltage Requirement Consideration:Allow for voltage drop in external wiring when assessing

Certification:Intrinsically Safe Certified

    The Yokogawa AAI143-H50 ANALOG INPUT MODULE is engineered to meet the highest safety standards, making it ideal for applications requiring intrinsic safety. It utilizes an isolation barrier to protect against electrical hazards, ensuring uninterrupted operation in hazardous environments.

    Featuring a versatile input resistance design, the module adapts to various current flow scenarios, delivering precise analog signal processing. Its innovative input protection circuit ensures minimal voltage drop, guaranteeing optimal performance.

    Designed with user convenience in mind, the AAI143-H50 ANALOG INPUT MODULE is compatible with two-wire transmitters, simplifying installation and reducing costs associated with additional wiring. The module’s voltage is developed across its connecting terminals, allowing for flexible integration into existing systems.

    To ensure compatibility and efficiency, our module requires consideration of the transmitter’s minimum operating voltage when calculating power requirements, factoring in potential voltage drops in external wiring. This approach optimizes system reliability and reduces maintenance needs.

    Crafted from high-quality materials, the Yokogawa AAI143-H50 ANALOG INPUT MODULE boasts durability and reliability. Its compact design facilitates seamless integration into a wide range of industrial control setups, enhancing operational efficiency and safety.
