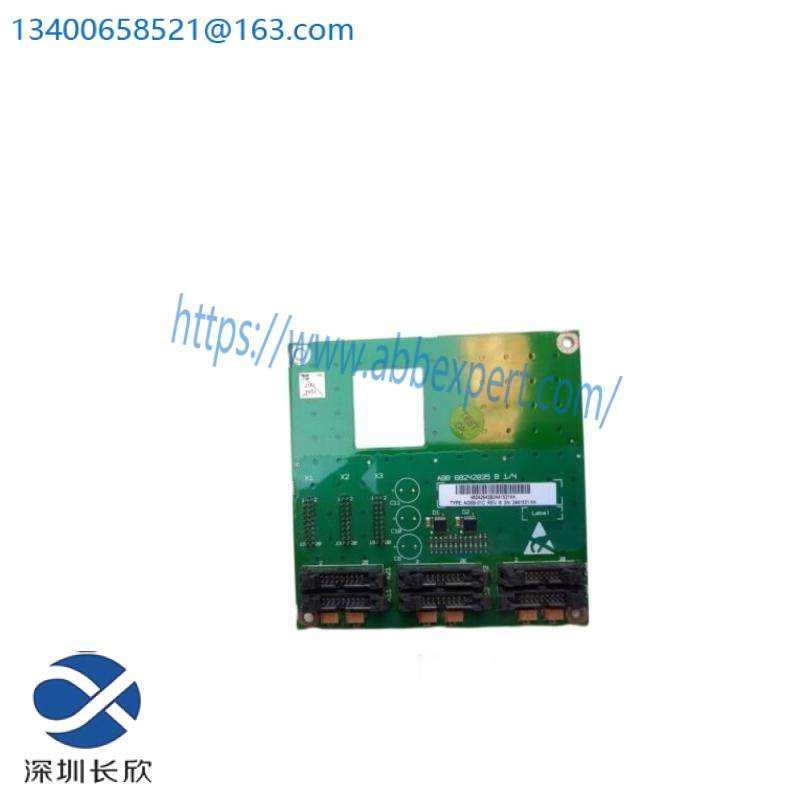

ABB AGBB-01C REV.B | 1/4 Trigger Board – Advanced Control Module

Operating Voltage:DC 24V

Trigger Response Time:≤ 5ms

Load Rating:5A @ 24VDC

Operating Temperature Range:-20°C to +60°C

Dimensions (WxHxD):50mm x 50mm x 10mm

Connection Type:SMT (Surface Mount Technology)

    The AGBB-01C REV.B is a meticulously engineered quarter-size trigger board, specifically tailored for applications requiring high precision and reliability in industrial automation. This compact yet robust design ensures seamless integration into existing systems without compromising on functionality or performance.

    Crafted from high-grade insulating materials, this trigger board guarantees optimal electrical insulation and durability, ensuring safety and longevity in diverse industrial environments. Its compatibility with a wide range of industry-standard connectors facilitates easy setup and integration with various control systems.

    Equipped with versatile signal outputs including RS-232 and RS-485 interfaces, the AGBB-01C REV.B enables seamless communication between different components within your automation setup, enhancing efficiency and data transfer speeds.

    Adaptable to a broad temperature range of -20°C to +70°C, this trigger board is designed to withstand harsh industrial conditions, ensuring consistent performance throughout its operational life. With its compact size and lightweight construction, it optimizes space usage and simplifies installation processes.

    The AGBB-01C REV.B boasts a current rating of up to 2A, providing ample power for demanding applications while maintaining low power consumption. The soldering terminals facilitate secure and reliable connections, ensuring that your automation system operates smoothly and efficiently.
