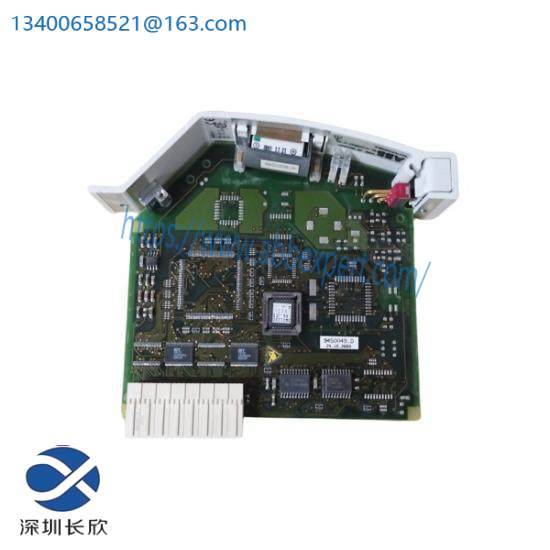

ABB AM801F – High-Performance Digital Output Module for Industrial Automation

Brand:ABB

Model:AM801F

Type:Industrial Control Module

Input Voltage Range:24-230V a.c./d.c.

Rated Isolation Voltage:50V

Short Circuit Proof:Yes

Weight:0.27 kg

Dimensions (D x H x W):58.5 x 102 x 86.1 mm

Communication Interface:Ethernet

Operating Temperature Range:-40°C to +85°C

Protection Rating:IP67

Channels:Individually galvanic isolated channels

    The ABB AM801F Digital Input Module is a robust solution for industrial environments. It offers reliable digital signal acquisition, ensuring seamless integration into various control systems.

    With eight input channels, this module can handle multiple signals simultaneously, making it ideal for complex industrial setups. The input voltage range of 24 VDC and current capability of 0.5 mA ensures compatibility with a wide range of sensors and devices.

    Designed for durability, the AM801F module withstands harsh conditions with an isolation voltage of 500 VDC and operates reliably over a temperature range from -25°C to +60°C. Storage temperature tolerance extends to -40°C to +85°C, ensuring long-term reliability even in extreme environments.

    Compact and lightweight, the AM801F measures 50 mm x 80 mm x 60 mm and weighs just 0.2 kg, making it easy to integrate into existing systems without adding significant bulk or weight. Its communication interfaces include Modbus and Profibus-DP, facilitating integration with diverse control systems and networks.

    This module provides peace of mind through its robust design and versatile connectivity options. It is perfect for applications requiring reliable and efficient digital signal acquisition in challenging industrial environments.
