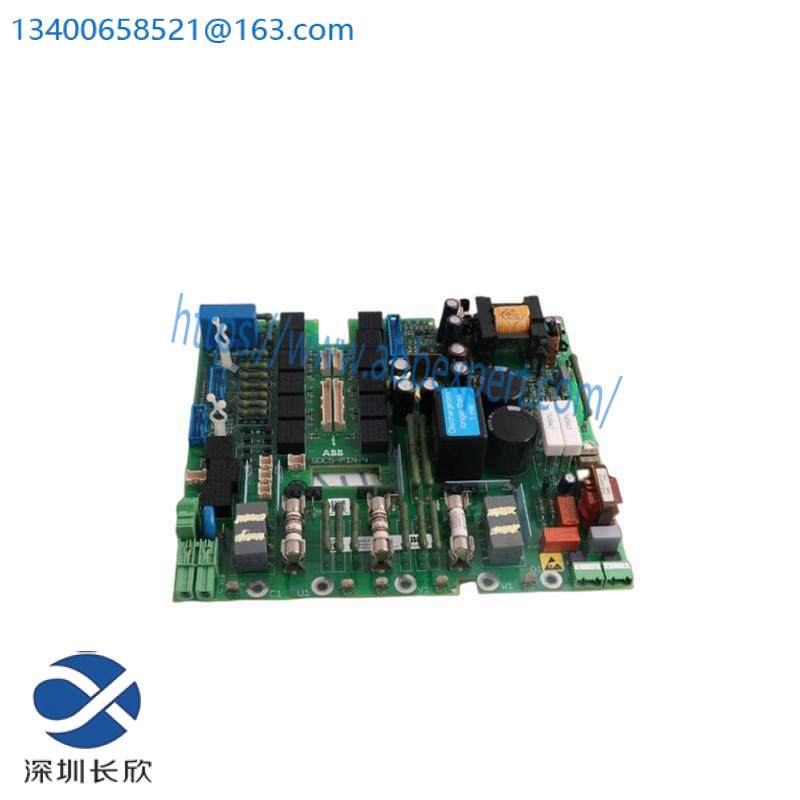

ABB SDCS-PIN-4 Pulse Transformer Module

Product Type:Pulse Transformer Module

Model:SDCS-PIN-4

Manufacturer:ABB

Operating Temperature:-25°C to +60°C

Voltage Range:50V AC/DC

Current Rating:10mA

Pulse Rate:Up to 1 MHz

Communication Interface:RS-485

Dimensions (WxHxD):50mm x 30mm x 10mm

Weight:20g

Connectors:4-pin screw terminal block

    The ABB SDCS-PIN-4 Pulse Transformer Module is a high-performance solution for pulse control systems in various industrial applications. Its compact design ensures minimal footprint on the control panel, making it an ideal choice for space-constrained environments.

    Equipped with advanced transformer technology, this module delivers exceptional precision and durability, ensuring reliable operation even under demanding conditions. Its wide voltage range and low current consumption make it suitable for a broad spectrum of industrial automation scenarios.

    Featuring a robust RS-485 communication interface, the SDCS-PIN-4 facilitates seamless integration with other ABB and third-party devices, enhancing system interoperability and flexibility. The module supports up to 1 MHz pulse rates, enabling precise synchronization and control over actuators and drives.

    Crafted from high-quality materials, the SDCS-PIN-4 is built to withstand harsh industrial environments, including high temperatures and dust. Its compact size and efficient design contribute to reduced power consumption, leading to lower operational costs and environmental impact.

    Easy to install and integrate into existing systems, the ABB SDCS-PIN-4 Pulse Transformer Module comes with comprehensive documentation and support. It is part of ABB’s extensive portfolio of automation solutions, backed by their commitment to innovation and customer satisfaction.
