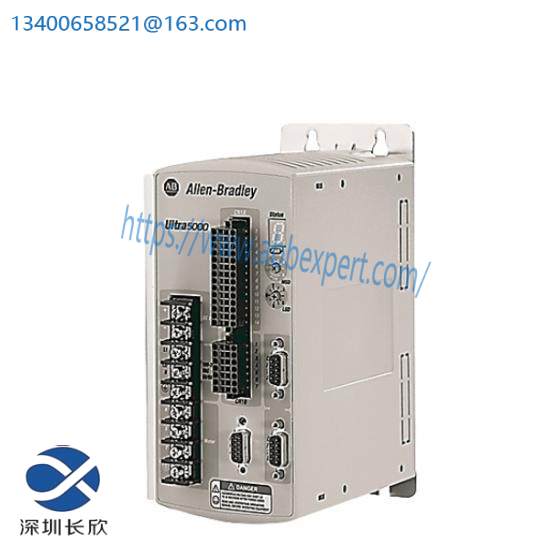

Allen-Bradley 2098-DSD-HV220-SE AC Drive

Input Voltage (0-peak):230-480 Vac, Three Phase

Nominal Input Current (AC):14 Amps

Root Mean Square Input Frequency (AC):47-63 Hz

Auxiliary Power Supply:Yes

Continuous Output Power @ 480 Vac:10.0 kW

Continuous Output Power @ 230 Vac:5.0 kW

Shunt Voltage Powered On:800V

Shunt On:Enabled

DC Internal Shunt Resistance:20 Ohms

Dimensions:9.54 x 15.43 x 8.0 in (242.2 x 391.8 x 203.2 mm)

Operating Temperature Range:0 to 55 °C

Relative Humidity Range:0 to 95% non-condensing

PID Control:Variable

PWM Frequency Input:Supported

EMC Compliance:Certified

Drive Standards:Compatible with various industry standards

    The Allen-Bradley 2098-DSD-HV220-SE AC Drive is a robust, high-performance solution designed to meet the stringent demands of modern industrial automation. Its intelligent design supports contemporary integration and configuration methods, ensuring seamless integration with existing systems.

    With a wide input voltage range and a choice of auxiliary power supply, this drive offers unparalleled flexibility and reliability. It boasts a nominal input current of 14 Amps and a frequency range of 47-63 Hz, making it suitable for a variety of applications.

    Featuring a continuous output power capacity of 10.0 kW at 480 VAC and 5.0 kW at 230 VAC, the 2098-DSD-HV220-SE ensures high efficiency and performance across different operational scenarios. Its advanced indexing feature enhances machine control, delivering superior performance and accuracy.

    Equipped with a 20 Ohm internal shunt resistance, the drive ensures stable operation under varying conditions. It is designed for use within a temperature range of 0°C to 55°C, ensuring reliable performance in diverse industrial environments.

    The Allen-Bradley 2098-DSD-HV220-SE is certified to meet multiple drive standards and adheres to EMC directives, ensuring compliance and reliability. This high-voltage AC drive is a standalone solution for various industrial applications, offering a comprehensive set of power platforms, connectivity options, and functions.
