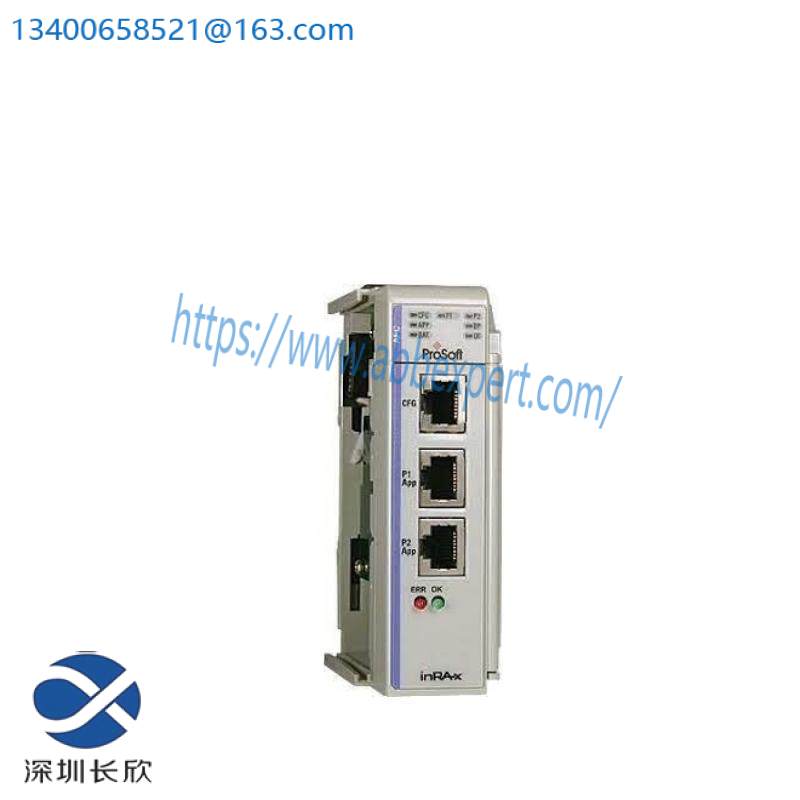

PROSOFT MVI56E-MNETC Ethernet Network Interface Module for PLC Automation

Operating System Compatibility:Backward-compatible with previous MVI56-MNETR versions

Network Protocol:Supports Ethernet configurations and application ports

Data Memory Mapping:User-definable module data memory mapping of up to 5000, 16-bit registers

Ethernet Speed:10/100 Mbps auto crossover detection

Server Capability:Server capability providing access for Human Machine Interfaces (HMIs), Supervisory Control and Data Acquisition (SCADA), or Distributed Control Systems (DCS)

Integrated Software:RSLogix™ 5000 integrated for simplified communication setup

Programming Requirements:No additional PAC/PLC programming required

Module Data Capacity:Up to 10,000 words available data, with support for floating-point data movement

    Integrating the Prosoft MVI56E-MNETC Module into your industrial control system is a strategic move towards enhancing operational efficiency and connectivity. This module is specifically engineered to provide fast and reliable data transfer between up to 30 clients and 20 servers, making it ideal for complex multi-server applications.

    With its robust design, the MVI56E-MNETC Module ensures minimal impact on other server communications when one server device goes offline, maintaining system stability and continuity. Its advanced server capability allows direct access for various systems, including HMIs, SCADA, or DCS, streamlining data management and analysis.

    The module’s compatibility with ControlLogix platforms and its integration with RSLogix™ 5000 simplifies setup and reduces the need for extensive programming, saving you time and resources. The AOI or ladder file option enables quick and easy configuration, ensuring a seamless integration process.

    For users requiring precise control over their data, the MVI56E-MNETC Module offers user-definable data memory mapping, allowing up to 5000 16-bit registers for tailored data management. The inclusion of floating-point data movement support ensures flexibility in handling complex calculations and operations.

    With its optimized design for remote rack implementations, this module is particularly beneficial for large-scale industrial setups where centralized control is essential. It features an IP address for easy configuration, backward compatibility, and compatibility with single-slot ControlLogix backplane, ensuring compatibility with a wide range of existing systems.
