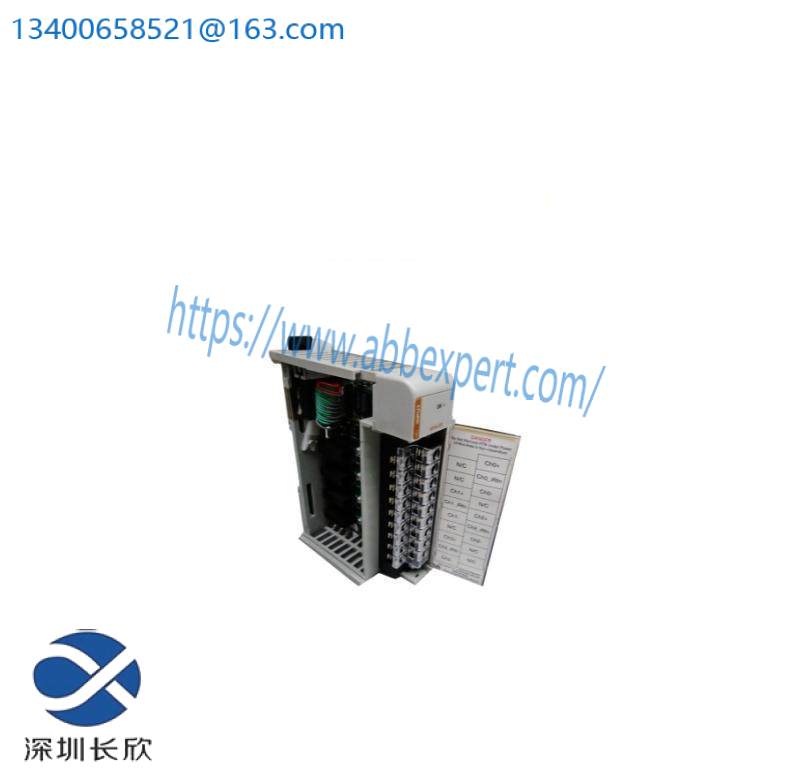

AB 1769-IF4 Analog Input Module

Number of Channels:4

Input Range:-10 to +10 VDC

Power Supply:24 VDC

Communication Interface:Modbus RTU

Operating Temperature:-40°C to +85°C

Environmental Compliance:UL, CE, CSA, FCC Class B

    The AB 1769-IF4 Analog Input Module is an essential component in industrial automation systems, designed to provide accurate and reliable data acquisition from sensors. It supports a wide range of analog signals, enabling seamless integration into diverse industrial processes.

    Featuring four high-resolution channels, this module ensures precise measurement and control in critical applications. Its robust design withstands harsh environmental conditions, ensuring continuous operation in extreme temperatures ranging from -40°C to +85°C.

    With a sampling rate of up to 20 samples per second, the AB 1769-IF4 ensures real-time monitoring and control of industrial processes. The built-in RS-485 Modbus RTU interface facilitates easy communication with other control devices, enhancing system efficiency.

    Offering a low power consumption of just 1.5 W, this module is energy-efficient and suitable for remote or battery-powered installations. Its 2-wire connection type simplifies installation and reduces wiring costs.

    The input resistance of the AB 1769-IF4 is adjustable between 2 kΩ to 10 MΩ, allowing it to adapt to various sensor requirements without the need for additional circuitry. This feature makes it a versatile choice for integrating with different types of sensors in industrial settings.
