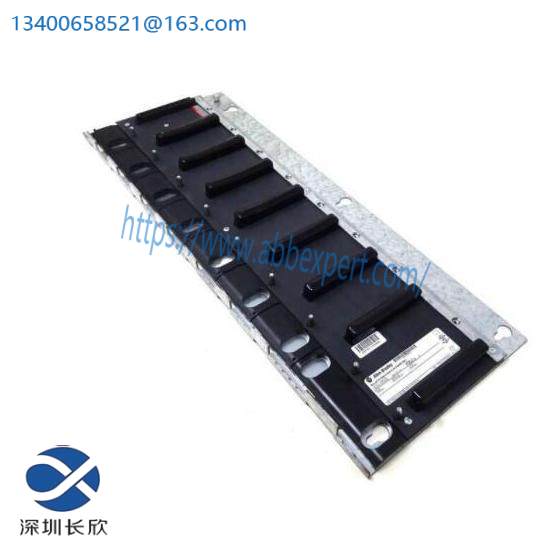

Allen-Bradley 2094-PRS8 Power Rail, AC Drive

Dimensions:632.5 mm (24.9 in) L x 25.4 mm (1 in) D

Module Capacity:1 IAM, 7 Additional

Weight:9.7 lbs (4.43 kg)

Applicable Drive Systems:230 or 460 Volt

Compatible Modules:Up to 8 Axes

Torque Limit:Up to 5.08 N•m (45.0 lb•in)

    The Allen-Bradley 2094-PRS8 power rail is specifically engineered for high-efficiency operation within industrial environments, ensuring reliable performance in automation tasks. This robust design accommodates a range of modules across 8 axes, offering unparalleled flexibility in system configuration.

    Crafted from durable materials, the 2094-PRS8 is compatible with the Kinetic 6000 drive systems, supporting both 230V and 460V power systems seamlessly. Its modular design allows for the integration of one IAM and up to seven additional modules, optimizing space and resource management.

    With its compatibility across a wide range of applications, this power rail is ideal for industries requiring precise motor control, such as manufacturing, robotics, and heavy machinery operations. It ensures efficient power distribution, reducing downtime and enhancing operational efficiency.

    Installation is straightforward, utilizing M6 Metric (1/4×20) bolts for secure attachment, with a recommended torque limit of up to 5.08 N•m (45.0 lb•in). To maintain safety and system integrity, ensure proper grounding using the provided braided strap, connecting it to the ground grid or power distribution ground.

    For optimal performance and longevity, follow best practices during installation, including separating the enclosure from the drive system during welding, cutting, drilling, and tapping activities. This precautionary measure prevents any potential damage to the circuitry caused by metal debris.
