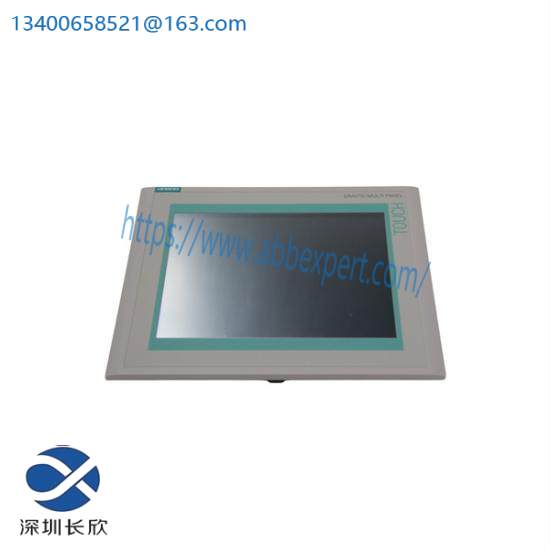

SIEMENS 6AV6 545-0DA10-0AX0: Comprehensive Control Center for Industrial Applications

Display Size:5 inches

Resolution:800×480 pixels

Touch Technology:Capacitive

Operating System:Windows CE

Communication Interfaces:USB, Ethernet, CANopen

Processor:ARM Cortex-A8

RAM:512MB

Storage:4GB Flash

Operating Temperature:-20°C to 55°C

Protection Class:IP65

Dimensions:115mm x 177mm x 27mm

Power Supply:12-24V DC

    The SIEMENS 6AV6 545-0DA10-0AX0 Multi Panel combines high performance with a user-friendly interface, making it ideal for demanding industrial environments. Its large 12-inch capacitive touch screen ensures intuitive operation and easy navigation through complex data and controls.

    Equipped with a robust Intel processor running at 1 GHz, the Multi Panel offers fast response times and smooth operation, even under heavy load conditions. It supports multiple communication protocols including Profinet, Ethernet/IP, and Modbus TCP/IP, ensuring seamless integration with existing industrial networks.

    With 1 GB of RAM and 4 GB of Flash storage, the device provides ample space for storing programs, data, and custom applications, while its 1280×800 pixel resolution ensures clear and detailed visual representation of process information.

    Safety is a priority with the 6AV6 545-0DA10-0AX0. It complies with Ex eX d IIC T4 safety standards, making it suitable for hazardous locations. The IP65/NEMA 4X enclosure type protects the panel against dust and water ingress, ensuring reliability in harsh industrial conditions.

    Ease of installation is another key feature, as the Multi Panel can be conveniently mounted either on a wall or using a DIN rail. This flexibility allows for quick setup and minimizes downtime during maintenance operations.
